cv2

在cv2的矩阵中，0代表黑色

install

pip install opencv-python

import

import cv2

图片

读取图片

cv2.imread(path)

展示图片

cv2.imshow("description",img)

等待键盘输入后，再退出循环。

cv2.waitKey(0)

若希望键盘输入q后，才退出

while True:
	if cv2.waitKey(1) & 0xFF == ord('q'):
    	break

栅格展示

def hv_stack(img: np.ndarray):
    img_hor = np.hstack((img, img))
    img_ver = np.vstack((img, img))

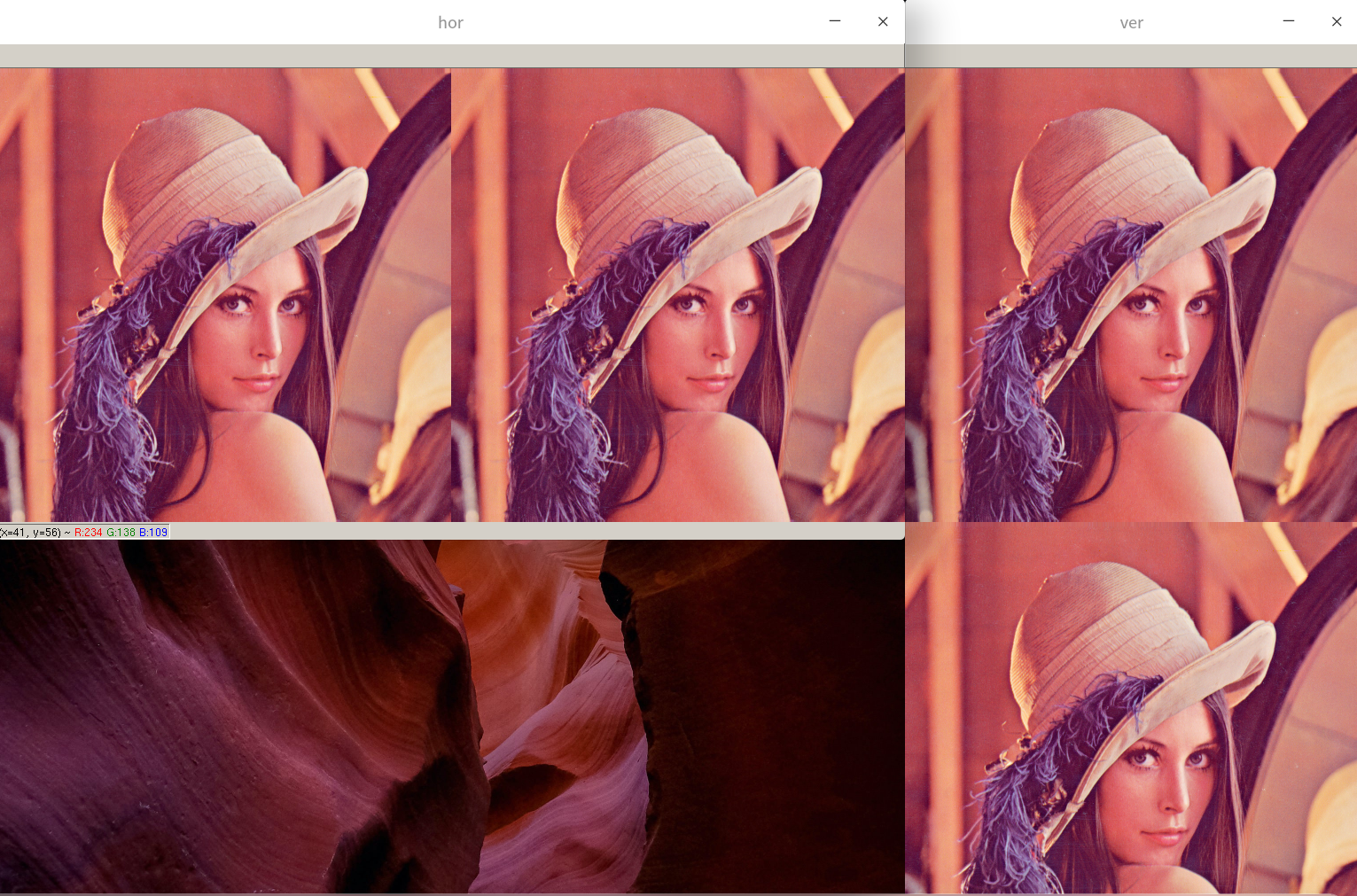

    cv2.imshow("hor", img_hor)
    cv2.imshow("ver", img_ver)

将同一shape的图片水平堆叠、垂直堆叠到一起

将水平堆叠的图片，垂直堆叠到一起

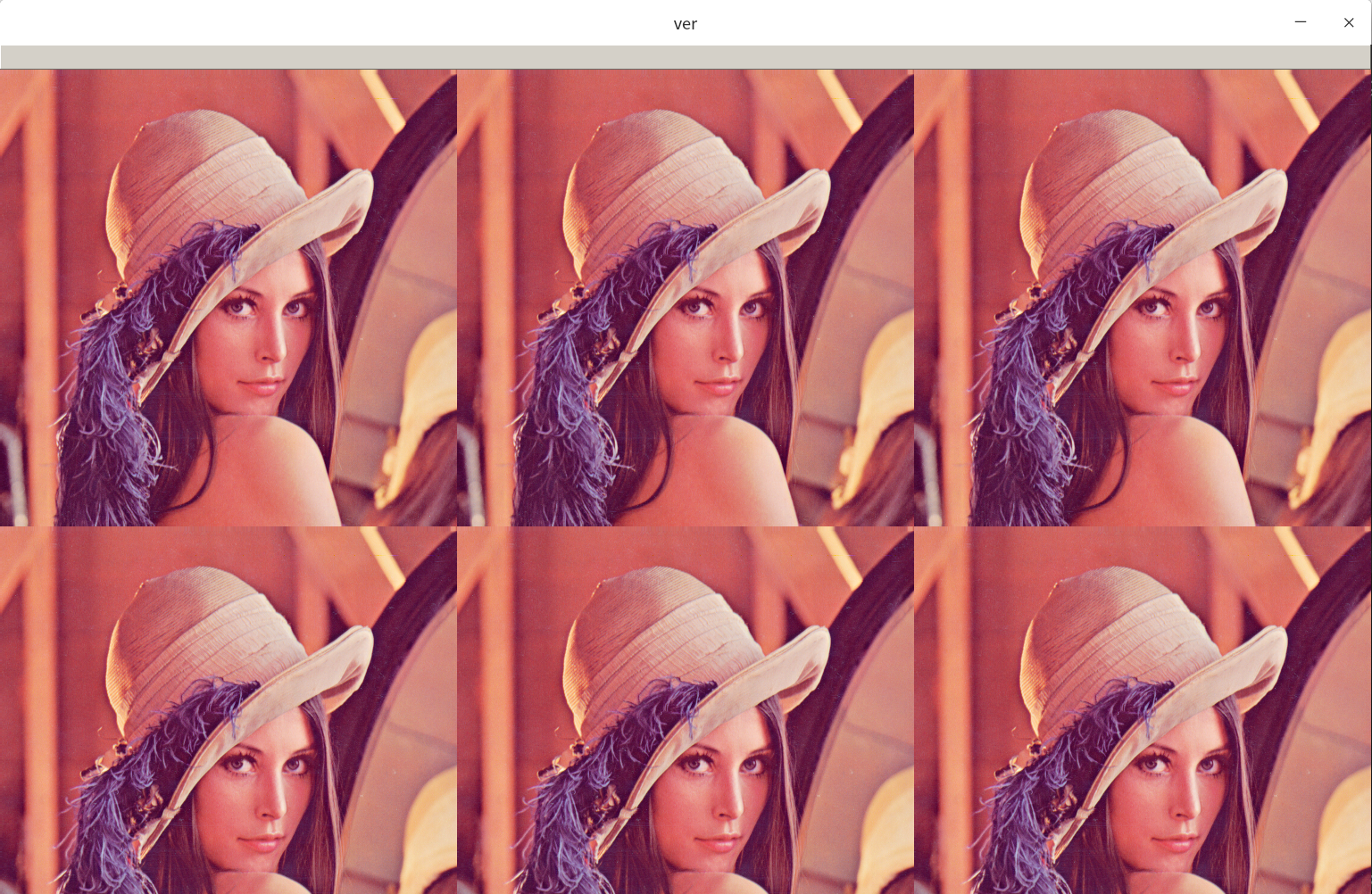

def hv_stack(img: np.ndarray):
    img_hor = np.hstack((img, img, img))
    img_ver = np.vstack((img_hor, img_hor))
    cv2.imshow("ver", img_ver)

兼容多尺度的图片展示

上述的栅格展示只能把相同shape的图片放在一起展示，如下的函数支持不同shape的图片的栅格展示

Just click to see it 的 stackImages function.

https://github.com/JieShenAI/doc_ai/blob/master/opencv/jshen/img.py

灰度化

imgGray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)

绘图

line

修改传入图片的值，而不是生产一个新的图片

在opencv中

matrix = np.zeros((300, 600, 3), np.uint8)

绘制一条直线

def draw_line(img: np.ndarray):
    start = (0, 0)
    end = (img.shape[1], img.shape[0])
    color = (0, 0, 255)
    thickness = 3

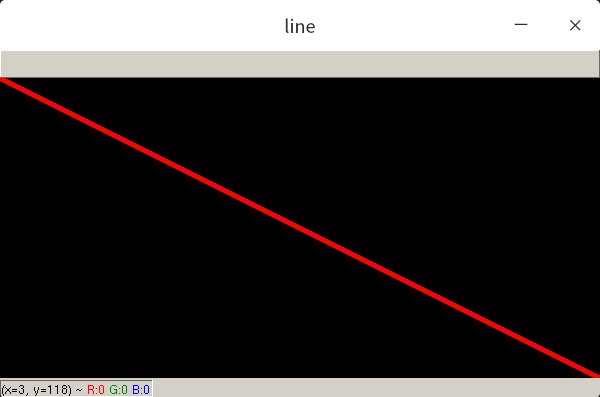

    cv2.line(img, start, end, color, thickness)

draw_line(matrix)
cv2.imshow("line", matrix)

cv2.line() start起点，end终点，thickness线的宽度；

通过cv2.line实现对图片矩阵数值的修改后，再通过cv2.imshow展示图片。

注意到，终点的坐标end = (img.shape[1], img.shape[0])。

在opencv中，第一个元素是横轴，在numpy矩阵中，第一个元素是纵轴；

rectangle

只需要给出矩形左上角坐标和右下角坐标即可

def draw_rectangle(img: np.ndarray):
    start = (200, 100)
    end = (img.shape[1], img.shape[0])
    color = (0, 255, 0)
    thickness = 3

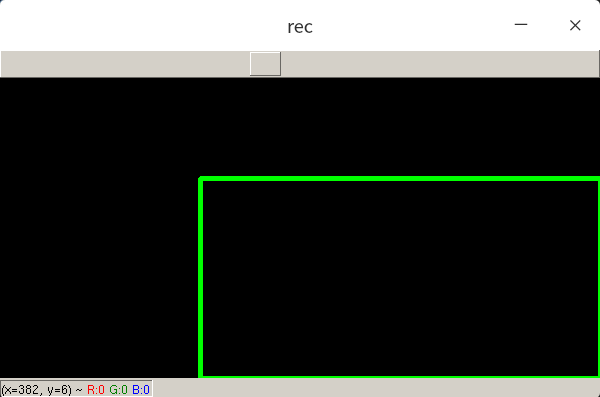

    cv2.rectangle(img, start, end, color, thickness)
draw_rectangle(matrix)
cv2.imshow("rec", matrix)

填充矩形

不要通过加粗矩形框的宽度，使用cv2.FILLED

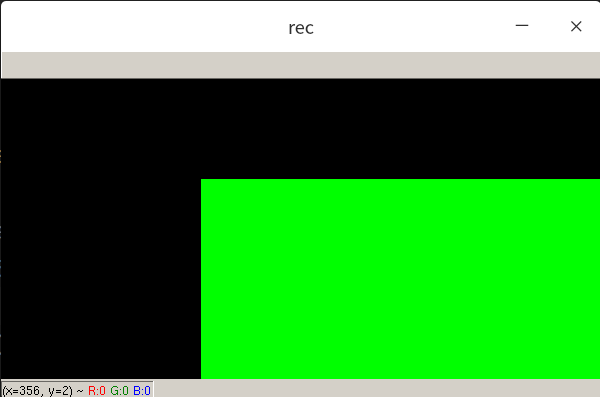

def draw_rectangle(img: np.ndarray):
    start = (200, 100)
    end = (img.shape[1], img.shape[0])
    color = (0, 255, 0)
    cv2.rectangle(img, start, end, color, cv2.FILLED)
draw_rectangle(matrix)
cv2.imshow("rec", matrix)

circle

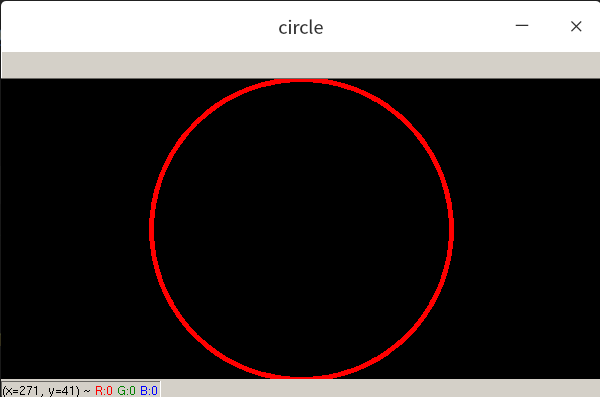

def draw_circle(img: np.ndarray):
    center = (300, 150)
    radius = 150
    color = (0, 0, 255)
    thickness = 3
    cv2.circle(img, center, radius, color, thickness)

putText

cv2.putText(img, "Great Again", (300, 150), cv2.FONT_HERSHEY_COMPLEX, 1, (255, 255, 0), 1)

图片切割

把图片从原图扣出来。给定4个坐标，(旋转后)放入新的框内。

def crop1(img: np.ndarray):
    img = cv2.imread("Resources/cards.jpg")

    width, height = 250, 350
    pts1 = np.float32([[111, 219], [287, 188], [154, 482], [352, 440]])
    pts2 = np.float32([[0, 0], [width, 0], [0, height], [width, height]])
    matrix = cv2.getPerspectiveTransform(pts1, pts2)
    imgOutput = cv2.warpPerspective(img, matrix, (width, height))

    cv2.imshow("Image", img)
    cv2.imshow("Output", imgOutput)
    cv2.waitKey(0)

color detection

continue
